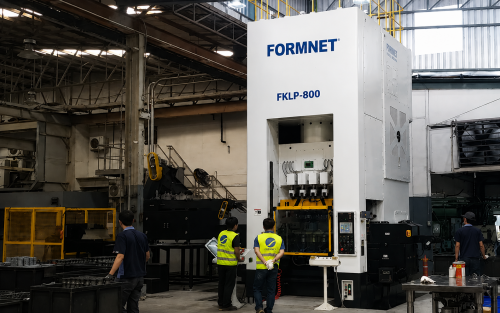

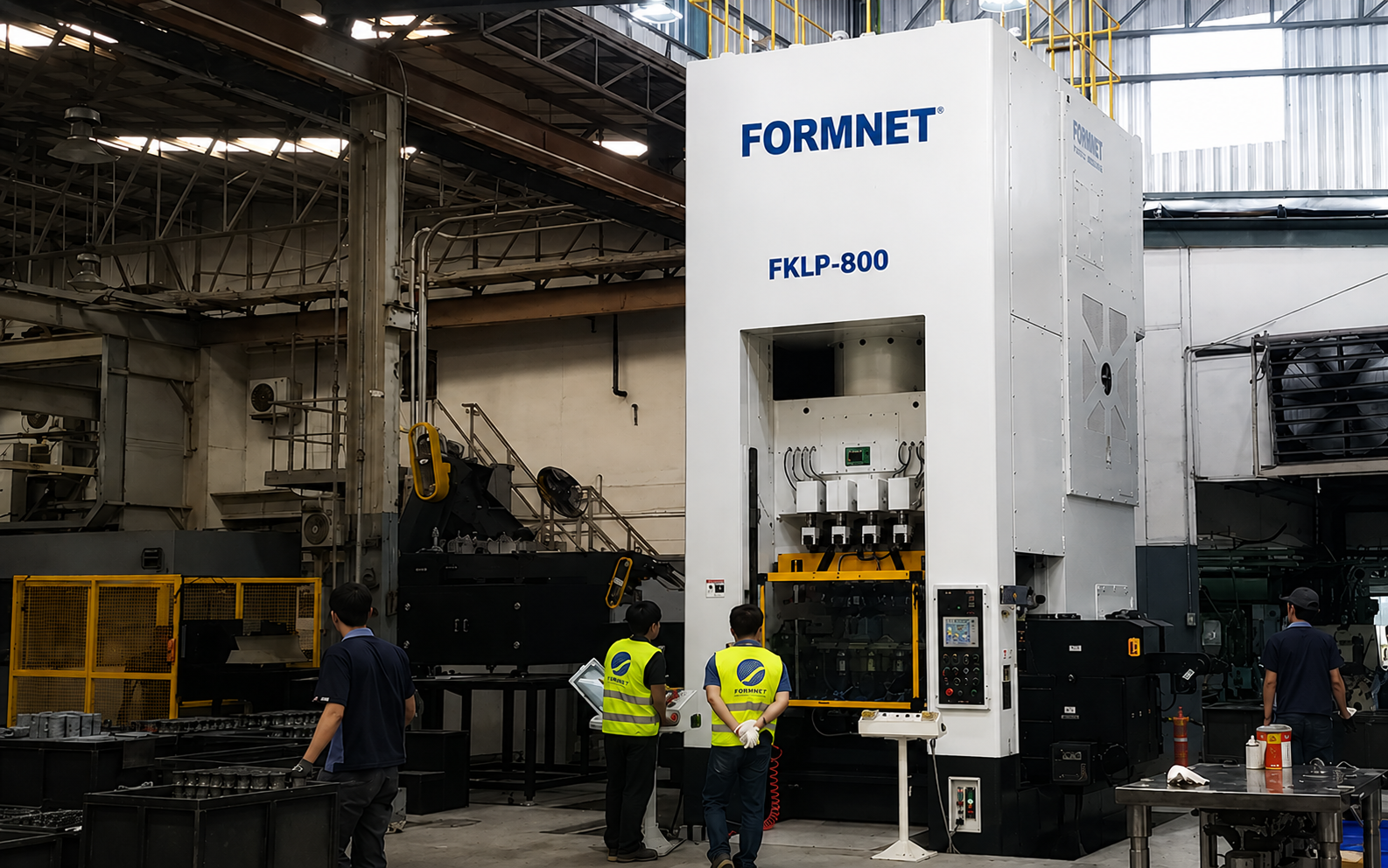

Cold Forging Press with Knuckle Link Motion
Cold Forging Press with Knuckle Link Motion
High rigidity solid loop frame of one-piece thick plate.
■ A heavy-duty steel plate high-rigidity frame structure has been adopted to ensure smooth load transfer and to minimize stretch. Stress at full load has been reduced by 50 percent with the high rigidity solid loop frame to greatly extend machine life. Its durability will reach the next generation.
■ A wide transfer presswork range thanks to a large allowable eccentric load and wide feed pitch 3-train BKO.
Increased net-shape presswork range
■ A major breakthrough in high-precision net-shape presswork utilizing “High rigidity solid loop frame” and “Knuckle link motion”.
High precision guide mechanism ensures large allowable eccentric load and high dynamic precision.
■ The “plunger guide” absorbs the thrust force generated by link motion. This, plus the ideally located long hexagonal gib, ensures large allowable eccentric load and high dynamic precision. This realizes high precision presswork and greatly lengthens the die life.
■ The hydraulic overload protector safeguards dies and reduces die replacement costs.
Energy saving inverter motor
