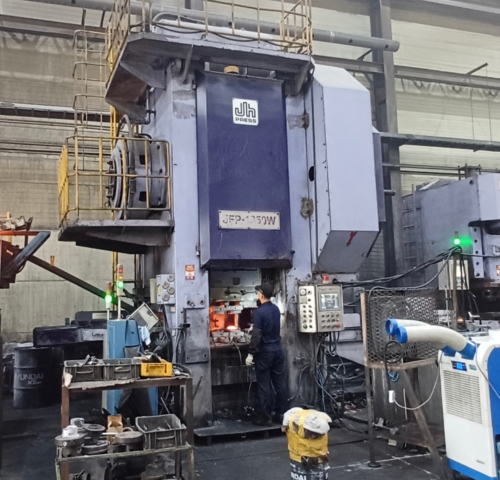

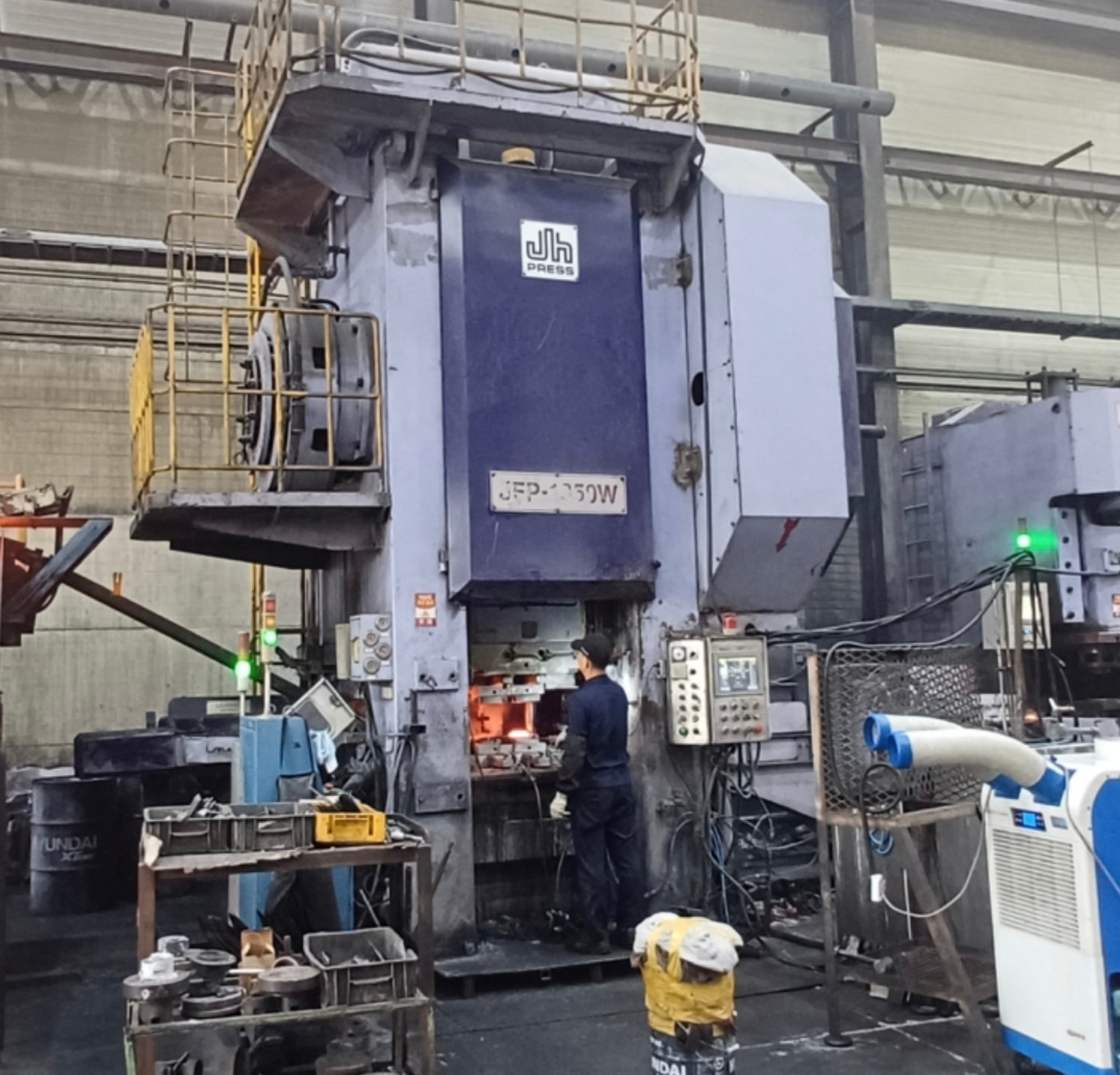

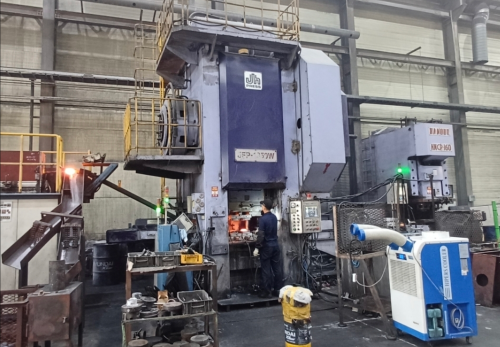

1350Ton Hot Forging Press

1350Ton Hot Forging Press

Manufcturer : JNH Press Korea
Year of manufacturing : 2014

* Specification
 ▪ Capacity : 1350tons
 ▪ Stroke : 240mm
 ▪ Stroke per minutes : 85
 ▪ Shut height : 720mm
 ▪ Slide adjustment : 8mm
 ▪ Slide size (LR x FB) : 880 x 920mm
 ▪ Bed size (LR x FB): 1032 x 1080mm
 ▪ Main drive motor power : 75Kw x 8P
 ▪ Press weight : 60tons (approx)
 ▪ Technical manual available in Korean language
